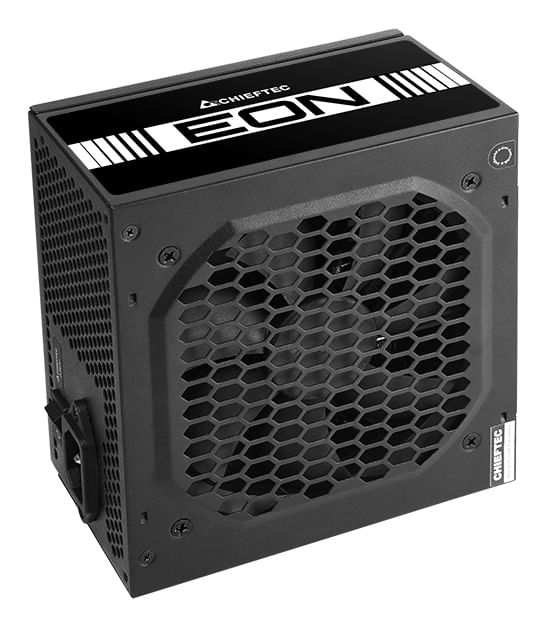

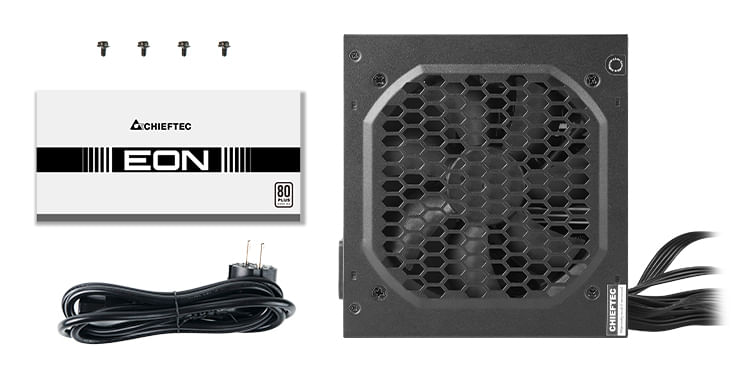

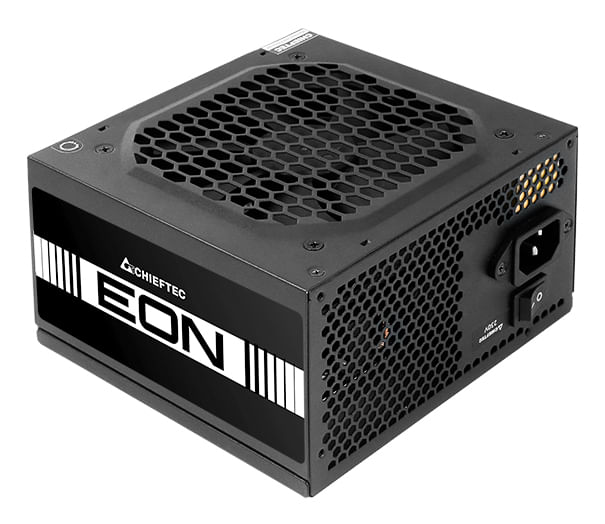

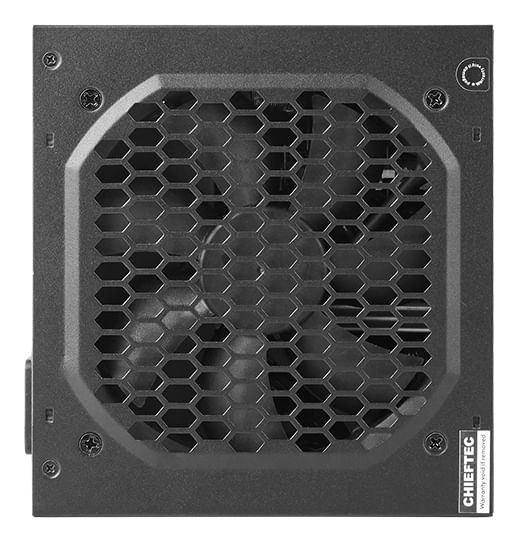

Power SupplyChieftec EON Series ZPU-500S 500W

Model EON 500W Article no. ZPU-500S EAN code 0753263078612 Weight (without/with package) 1.2 kg / 1.45 kg AC Input 200-240V~ / 3.5A Frequency 50Hz +5V 20A +3.3V 20A +5V & +3.3V combined 100W +12V1 37A +12V2 -- +12V1, +12V2 combined 444W P.F. > 0.9 -12V 0.4A / 4.8W +5VSB 2.5A / 12.5W Maximum Power 500W Connectors 20+4 PIN ATX 1 8 PIN EPS(4+4) 2 8 PIN PCIe (6+2) 2 SATA/MOLEX 4/2 Cable length (mm) 20+4 PIN ATX 550 8 PIN EPS (4+4) 1 x 600/100 8 PIN PCIe (6+2) 1 x 550/150 SATA/MOLEX 2 x 450/150/150 Features Specification ATX 12V 2.3 Form factor ATX Efficiency 80Plus Standard 230V EU Dimension (DxWxH) 140mm x 150mm x 86mm PFC Active PFC (0.9) Fan 120mm silent fan Security AFC (Automatic Fan speed Control) OPP (Overload protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection) Warranty 24 Months
