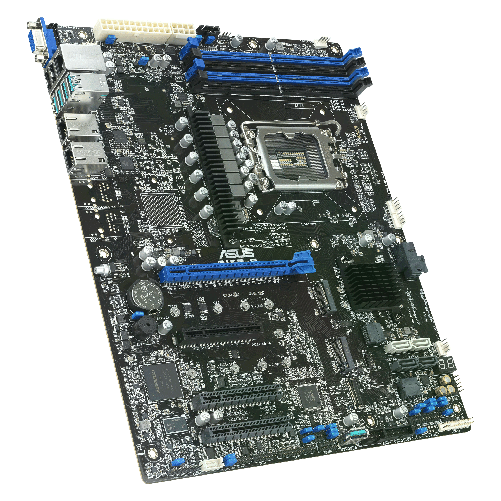

ASUS P13R-E LGA1700 C266 ATX Server MB 4xDDR5 8xSATA 2xM.2 - Intel Sockel 1700 (Core i) (90SB0CS0-M0UAY0)

Processor / System Bus 1 x Socket LGA1700 Intel® Pentium® Processors Intel® Xeon® E processors Core Logic Intel® C266 Chipset Memory Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB Memory Type : DDR5 4400 ECC UDIMM Memory Size : 128GB * Refer to support page for more information Expansion Slots Total Slot : 4 Slot 1 : PCI-E x8 (Gen4 X4 Link) Slot 2 : PCI-E x8 (Gen4 X4 Link) Slot 4 : PCI-E x8 (Gen5 X8 Link) Slot 6 : PCI-E x16 (Gen5 X16 Link), Auto switch to x8 link if slot 4 is occupied Form Factor ATX (12"x9.6", 305mm x 244mm) ASUS Features FAN speed control Rack Ready (Rack and Pedestal dual use) ASUS Control Center Storage Storage Controller : 8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors 2 x M.2 connector(22110,support NVMe PCIe x4 link) Networking 2 x Intel® I210AT2 + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM (VGA from BMC) On Board I/O 1 x VGA Header (VGA from BMC) 1 x TPM header 1 x COM port 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x M.2 Connector 1 x Internal USB3.2 Gen2 (type-A Vertical) 1 x USB3.2 Gen1 header,2 ports 1 x USB2.0 header Back I/O Ports 4 x USB 3.2 Gen2 2 x USB 2.0 1 x VGA port (VGA from BMC) 2 x 1 GbE LAN + 1 x Mgmt LAN Management Solution On-Board ASMB11-iKVM for KVM-over-IP Weight Gift Box (1-in-1) Net Weight : 0.76 KG Gross Weight : 1.3 KG Bulk Pack (10-in-1) Net Weight : 6.9 KG Gross Weight : 9.5 KG Environment Operation temperature: 10? ~ 50?* Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories Gift Box (1-in-1) 1 x I/O shield 1 x Plate for LGA1700 Bulk Pack (10-in-1) 1 x I/O shield 1 x Plate for LGA1700 Monitoring CPU Temperature Fan RPM
